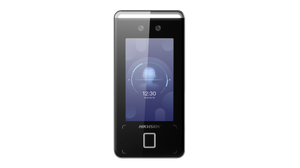

Face Recognition Terminal DS-K1T341AM

Hikvision

Send us your requirement for a estimated quote

Current Stock:

HIKVision DS-K1T341AMF face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with
higher accuracy.

It also supports multiple authentication modes: face/card/fingerprint authentication, etc.

It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.



Features

Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the
same time, the authentication or attendance is valid

Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed.

4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in Mifare card reading module

Face recognition distance (without face mask): 0.3 m to 1.5m

Max.3000 faces capacity, Max.3000 cards and 3000 fingerprints

Two-way audio with client software, indoor station, and master station

Supports TCP/IP

Configuration via the web client

Supports ISAPI and ISUP5.0 protocol

Duration < 0.2 s/User

Accuracy rate ≥ 99%

IP65



Specifications

System
Operation system: Linux

Display
Dimensions: 4.3-inch
Type: LCD
Operation method: Capacitive touch screen

Video
Pixel: 2 MP
Lens: x2

Audio
Tone quality: Noise suppression and echo cancellation

Network
Wired network: 10 M/100 M/1000 M self-adaptive
Communication Protocol: SDK;ISUP;ISAPI;HTTPS:HikCentral Pro OpenAPI: Hik-ProConnect OpenAPI

Interface
Network interface: 1
Wiegand: 1
Lock output: 1
Exit button: 1
Door contact input: 1
Power interface: 2-pin

Capacity
Card capacity: 3000
Face capacity: 3000
Event capacity: 150,000

Authentication
Card type: Mifare 1 card
Card reading frequency: 13.56MHz
Card reading distance: 0 to 5 cm
Face recognition duration: < 0.2 s per person
Face recognition accuracy rate: ≥ 99%
Face recognition distance: 0.3 to 1.5 m

Function
QR code recognition: Support
Face anti-spoofing: Support
Advertisement: Support
Audio prompt: Support
Time synchronization: Support

General

Button: Touch Screen

Power supply method: 2 pin connecter

Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)

Working humidity: 0 to 90% (No condensing)

Dimensions: 172.5 mm × 83.2 mm × 22.7 mm (6.79" × 3.27" × 0.89")





2 Years Manufacturer Warranty
