KD8 Series Pro Modular Door Station DS-KD-KP

Hikvision

Send us your requirement for a estimated quote

Current Stock:

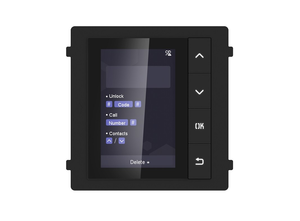

Video Intercom Keypad Module



Features

Supports unlock the door via entering password

Supports call the resident via entering room No.

Backlight compensation

Easy to and extend



Specifications

System Parameters

Processor:

Embedded MCU Processor

Operation Method:

Physical button

Interfaces

Module-connecting:

2 (1 input, 1 output)

Debug:

1

General

Physical Button:

12

DIP Switch:

8

Power Input:

12 VDC (powered by the other module)

Power Output:

12 VDC (powered by the other module)

Installation:

Flush mounting, surface mounting

Protection Level:

IP65

Power Consumption:

1 W

Working temperature:

-40° C to + 55° C(-40° F to 131° F)

Working humidity:

10% to 95%

Dimension:

98 mm × 100 mm × 34.2 mm (3.87" ×3.95" × 1.33")

Weight:

529g (with packaging)

265g (without packaging)



Download Data Sheet here.

2 Years Manufacturer Warranty
