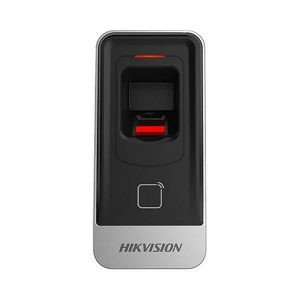

Optical Fingerprint Recorder DS-K1F820-F


Send us your requirement for a estimated quote

Current Stock:

DS-K1F820-F Fingerprint Recorder supports living fingerprint registration, and identification. It can connect to the computer directly via USB interface, and upload/download fingerprint characteristic data and image to the controller/ module. It supports the function of checking the completeness of registered fingerprint templates.



508 dpi high-definition

Supports the function of PnP (plug and play)

Optical fingerprint sensor designed with scratch-resistant material

Applies to Windows XP, Windows7, and Windows 10 operation system

Supports configuration and operation via client software

USB 2.0 communication standard for data transmission

Power over USB

Composite fingerprint images from triple collection



CPU: 32bit MCU

Fingerprint Reader: Optical, Red Backlight

Resolution: 508 dpi

Fingerprint Template Size: 256 × 288 (pixel)

Commnucation Interface: USB 2.0

Operating Voltage: 5 VDC, 200mA

Working Temperature: -30°C to +70°C (-22°F to 158°F)

Working Humidity: 20% to 80%

Operating System: Windows XP, Windows7, and Windows 10

Dimensions: 100mm × 48mm × 35mm (3.9” × 1.9” × 1.4”)
