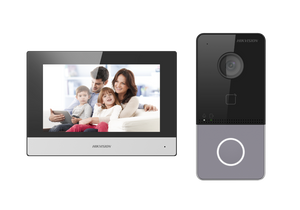

Villa Door Two-Wire Station Kit DS-KIS703-P

Video Intercom Two-Wire Kit



Features

Two-Wire Indoor Station

Easy, Cost-Efficient Installation

7 inch Touch-Screen, User Friendly Interface, Plug & Play

Receives Video Call And Unlocks On Mobile App Anywhere, Anytime



Villa Door Station

High quality imaging with 2 MP resolution

Easy, Cost-Efficient Installation

User Friendly Design, Name tag, Communication status LED indicator

IP65 water resistant, preventing water ingress for outdoor use



Specifications

Two-Wire Villa Door Station

System Parameters

Operation System: Embedded Linux operation system

Operation Method: Single-button

Flash: 32 M

RAM: 256 M



Video Parameters

Camera: 2MP HD camera

Night Vision: Low illumination IR supplement mode:3 m

Backlight Compensation(BLC): Support

Digital Noise Reduction (DNR): Support

Wide Dynamic Range (WDR): True WDR

Field of view: Horizontal: 144° Vertical: 95°

Video Compression Standard: H.264

Stream: Main stream: 1080p@30fps, 720p@30fps Sub stream: 4CIF

Resolution: Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576

Motion Detection: Support

Anti-flicker frequency: 50 Hz, 60 Hz



Audio parameters

Audio intercom: Two-way audio communication

Audio input: Built-in omnidirectional microphone

Audio output: Built-in loudspeaker

Audio Compression Standard: G.711 U

Audio Compression Rate: 64 Kbps

Audio quality: Noise suppression and echo cancellation



Network Parameters

Wired Network: 10/100 Mbps Ethernet

Network Protocol: TCP/IP, RSTP



Access Control Parameters

Reading frequency: Not supported

Relay: 2



Interfaces

Output: 12V/1 A output

Debugging port: 1

Alarm input: 2

Grounding: 1

Two-wire interface: 1

TAMPER switch: 1



General

Protection level: IP65

Indicator: 3

Power supply: From indoor station

Power Consumption: < 10 W

Heater: Support

Working temperature: -40° C to +60° C(-40° F to 140° F)

Working humidity: 10% to 95%

Installation: Surface mounting, flush mounting

Dimension: 169 mm × 110 mm × 31 mm (6.54” × 4.33” × 1.22”)

Weight: 476g



Indoor Station

System parameters

Memory: 128 MB

Flash: 32 MB

Operation system: Embedded Linux operation system



Display parameters

Display screen: 7-inch colorful TFT screen

Display resolution: 1024 × 600

Operation method: Capacitive touch screen

Brightness: Adjustable



Audio parameters

Audio input Built-in microphone

Audio output Built-in loudspeaker

Volume: Local adjustable

Audio Compression Standard: G.711 U, G.711 A

Audio quality: Noise suppression and echo cancellation



Network parameters

Wired network: 10/100 Mbps self-adaptive

Wireless network: Wi-Fi 802.11 b/g/n



Interfaces

Two-wire interface: 1

Alarm input: 8

Debugging port: 1 channel reserved

RS485: 1



General

Power supply: 24 VDC

Power consumption: ≤ 8 W

Working temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working humidity: 10% to 90%

Dimensions: 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

Weight: 334.5g
