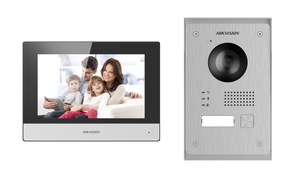

Villa Door Station Kit DS-KIS603-P

Video Intercom Villa Door Station Kit



Features

Villa Door Station

Standard PoE
2 MP HD camera
Noise suppression and echo cancellation
Low illumination
Access control functions
Tamper-proof
Configuration remotely via Web



Network Indoor Station

7-inch colorful touch screen with resolution 1024 × 600

Standard PoE

Stores messages and captured pictures in the TF card

Remote unlocking via the client software or the mobile
client

Views live videos of door stations and linked cameras

Supports wireless network



Specifications

Villa Door Station

System Parameters

Operation System: Embedded Linux operation system

Operation Method: Single-button

Flash: 32 M

RAM: 256 M



Video Parameters

Camera: 2MP HD camera

Night Vision: Low illumination IR supplement mode:3 m

Backlight Compensation(BLC): Support

Digital Noise Reduction (DNR): Support

Wide Dynamic Range (WDR): True WDR

Field of view: Horizontal: 129° Vertical: 75°

Video Compression Standard: H.264

Stream: Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps

Resolution: Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576

Motion Detection: Support

Anti-flicker frequency: 50 Hz, 60 Hz



Audio parameters

Audio intercom: Two-way audio communication

Audio input: Built-in omnidirectional microphone

Audio output: Built-in loudspeaker

Audio Compression Standard: G.711 U

Audio Compression Rate: 64 Kbps

Audio quality: Noise suppression and echo cancellation



Network Parameters

Wired Network: 10/100 Mbps Ethernet

Network Protocol: TCP/IP, RSTP



Access Control Parameters

Reading frequency: 13.56 MHz

Card type: Mifare card

Relay: 1



Interfaces

RS-485: 1

Wi-Fi: 2.4G Wi-Fi

Debugging port: 1

TF card: 0

Alarm input: 4

Grounding: 1

Physical button: 1

TAMPER switch: 1



General

Protection level: IP65

Indicator: 2

Power supply: IEEE802.3af, standard PoE, 12 VDC

Power

Consumption: < 10 W

Working temperature: -40° C to +60° C(-40° F to 140° F)

Working humidity: 10% to 95%

Installation: Surface mounting

Dimension: 138 mm × 65 mm × 27 mm

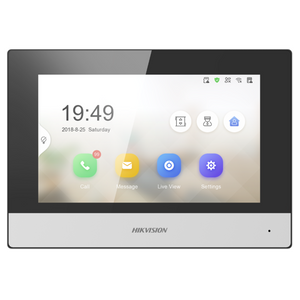

Indoor Station

System parameters

Memory: 128 MB

Flash: 32 MB

Operation system: Embedded Linux operation system



Display parameters

Display screen: 7-inch colorful TFT screen

Display resolution: 1024 × 600

Operation method: Capacitive touch screen



Audio parameters

Audio input Built-in omnidirectional microphone

Audio output Built-in loudspeaker

Audio Compression Standard: G.711 U

Audio Compression Rate: 64 Kbps

Audio quality: Noise suppression and echo cancellation



Network parameters

Wired network: 10/100 Mbps self-adaptive

Wireless network: Wi-Fi 802.11 b/g/n

Network protocol: TCP/IP, SIP, RTSP

Network interface: 1 RJ-45 10/100 Mbps self-adaptive



Interfaces

Alarm input: 8-ch alarm inputs

Relay output: 2

TF card: Max to 32 G, SD 2.0 or lower version

RS485: 1



General

Power supply: IEEE802.3af, standard PoE, 12 VDC/1 A

Power consumption: ≤ 6 W

Working temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working humidity: 10% to 90%

Dimensions: 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
