Yamaha R-N2000A Stereo Receiver

Yamaha Parametric Room Acoustic Optimizer (YPAO™)

Environmental factors play an important role in the sonic signature of a room, and with any type of audio. Yamaha’s own YPAO™ automatic calibration technique, refined over decades of use in Home Theater products, has been optimized for the R-N2000A to deliver the ideal listening environment, as if you were in a professional audio listening room - without requiring any laborious manual setting adjustments. YPAO™ features precision EQ, which performs exceptionally high-precision equalization with accuracy of up to 192 kHz / 64-bit audio resolution. YPAO™ R.S.C. (Reflected Sound Control) works in tandem to actively control the important early reflection sounds, automatically adjusting and optimizing how the sound is heard in your room, depending on the materials of the walls and the speaker placement. Which means you can enjoy the profound sound and immersive feeling unique to Hi-Fi audio - right in your own living room.



TOROIDAL TRANSFORMER

Usually reserved for flagship Hi-Fi components, the R-N2000A benefits from the technical proficiency and absolute musicality of a toroidal transformer. Combined with an array of high-end Hi-Fi features and components, the toroidal transformer assists in ensuring the musical emotion is conveyed to the listener. Moreover, a 3 mm brass base is sandwiched between the bottom of the transformer and the inner chassis to control vibrations in the transformer, delivering an overwhelmingly spacious sound filled with realism.

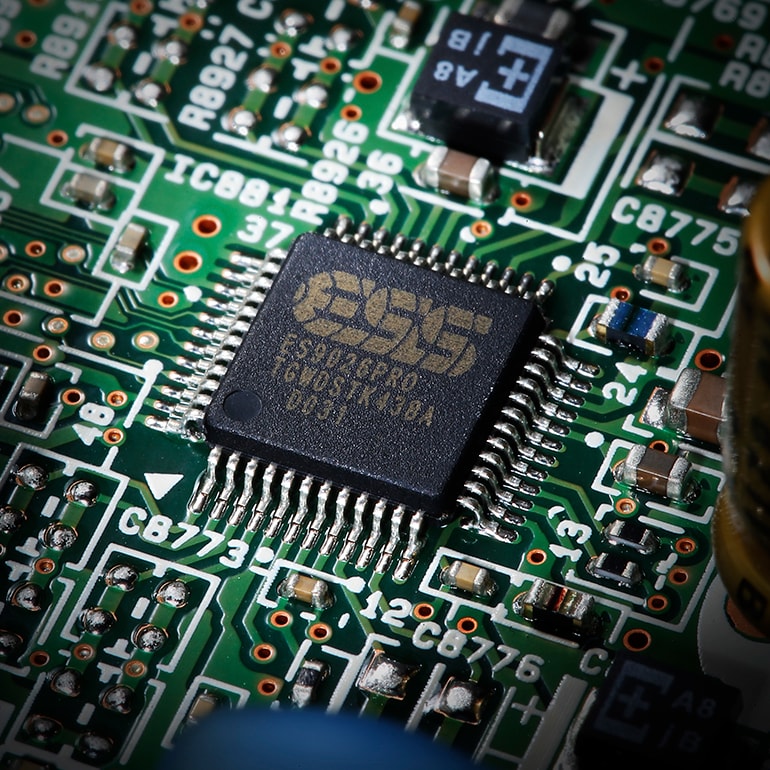

HIGH-PERFORMANCE DAC

In pursuit of clear, transparent sound field reproduction while delivering rich and fully detailed level of musicality, we have adopted the state of the art ES9026PRO digital-to-analog converter from ESS Technologies. This high-quality DAC achieves highly accurate signal conversion through the balanced analog audio output and further refined current delivery for four-channel operation, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.

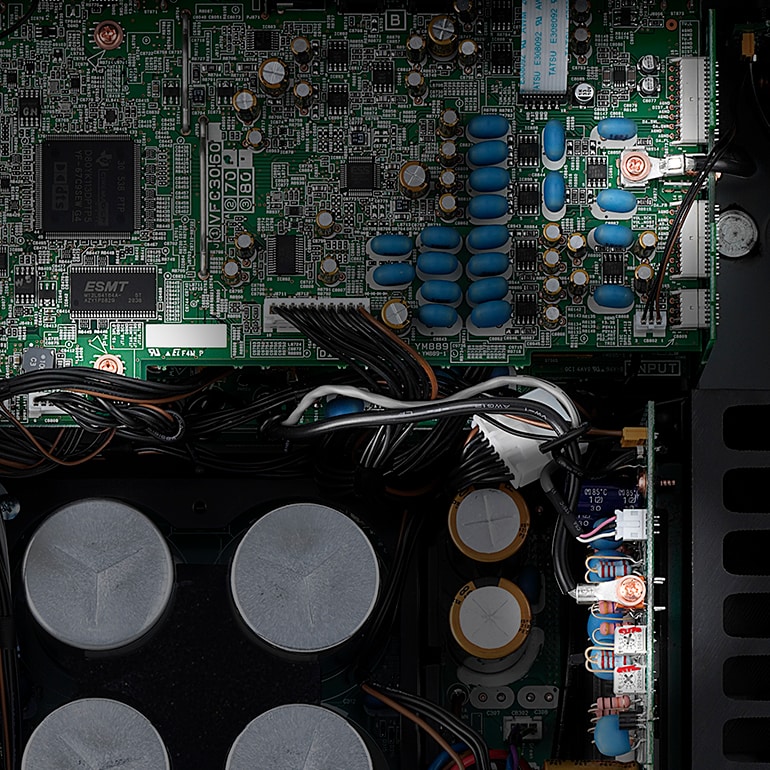

LOW IMPEDANCE CONCEPT

In order to thoroughly eliminate energy loss and degradation of the audio signal, the R-N2000A features thick wires for the ground connection a critical feature that establishes the componentry as being truly premium Hi-Fi. In addition, a screw connection is adopted for the output from the power amplifier section in order to strengthen the ground, which is important for audio quality. By achieving these, an open, natural sound stage is realized, bringing the artist and listener closer together.



Specifications

Network Section	File Format: MP3, WMA, MPEG4 AAC, WAV,FLAC, AIFF, DSD Airplay: Yes
Maximum Power (4 ohms, 1kHz, 0.7% THD)	190W + 190W
Maximum Power (8 ohms, 1KHz, 10% THD)	120W + 120W
High Dynamic Power/Channel (8/6/4/2 ohms)	100W / 130W / 185W / 215W
Frequency Response	5-100 kHz +0/-3 dB, 20-20 kH +0,-0.3 dB (Pure Direct ON)
Signal-to-Noise Ratio (CD)	110 dB (Pure Direct ON)
Audio In/Out	Phono, CD, line1, line2
Digital Input	Optical1, Optical2, Coaxial)
USB Input	USB DAC (USB B-type)
Subwoofer Out	Yes
Control (Trigger) Out	Yes
FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono)	3 µV (20.8 dBf)
FM Signal-to-Noise Ratio (Mono/Stereo)	69 dB / 67 dB
Pure Direct	Yes
ToP-ART	Yes
Standby Power Consumption	0.1W (Network standby on / Wi-Fi connection: 1.8W)
Dimensions	435 x 157 x 473 mm (with antenna up: 435 x 233 x 473 mm)
Weight	22.1kg
Receiver/Integrated Amplifier
Network Section	Wi-Fi: Yes Bluetooth: Yes (SBC / AAC)
Rated Output Power	[20-20 kHz 0.07 % THD] 90 W+90 W (8 ohms) 145 W + 145 W (4 ohms)
Ethernet	Yes
Headphone Out	Yes
