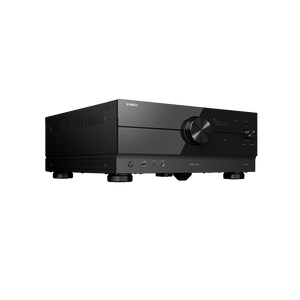

Yamaha AV Receiver RX-A4A

Yamaha
Availability:
Usually ships between 1 - 5 days, subject to availability
$2,449.00
Current Stock:

A4A - 7.2 ch AVENTAGE with SURROUND:AI™, HDMI™ 7-in/3-out, the latest QCS407.

  • 7.2 Channel powerful surround sound with Zone2
  • Wi-Fi, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast multi-room audio
  • SURROUND:AI automatically optimises the surround effect in real time
  • Dolby Atmos® and DTS:X® with CINEMA DSP HD3
  • YPAO™-R.S.C. with multi-point measurement, precision EQ and low frequency mode
  • HDMI™ 7 in/3 out, 8K/60Hz, 4K/120Hz, HDR10+
  • Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update
  • ESS SABRE ES9007S Premier Audio DAC for high performance conversion
  • Voice control with Alexa and Google Assistant devices. *Availability varies by region

Make every night movie night. In fact, feel like you've entered the story. The Yamaha approach to tonal balance delivers incredibly detailed and accurate timbre in each voicing. Dynamism is found in the emotive contrast between the stillness and motion in the movie. The urgency and suspense between action scenes is palpable through the sound field that is created.

AI technology built into the DSP analyses the scene of the entertainment content and then creates the optimal surround effect to reproduce it with the ultimate impact. This AI instantaneously analyses scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimizes the surround effect in real time. Imagine having a Yamaha sound engineer right there whilst your listening, tuning the best sound live and specifically for you. AI technology creates a compelling sense of realism with expressive power beyond conventional sound field effects, giving you the most profound entertainment experience possible. Qualcomm® QCS407 with 64-bit high precision processing delivers precise surround sound.

Yamaha’s flagship 3D sound field playback technology was created by combining actually measured sound field data with cutting edge digital signal processing technology. The revamped CINEMA DSP HD3 features new signal processing algorithms and maximises theatre sound effects, accurately reproducing a new dimension of realism for a sound field with a rich sense of presence and no feeling of boundaries. By using front, centre and surround speakers to create a rear virtual speaker, CINEMA DSP HD3 playback up to 11.1 channels is possible* even with a 7.1-channel speaker configuration.

*Requires connection to a front presence speaker.

Dolby Atmos® with Height Virtualizer
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos® with Height Virtualization Technology simulates the Atmos experience with forward facing-drivers. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.

Feel every dimension in Dolby Atmos®. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos® elevation speakers, delivering dramatic overhead effects for truly enveloping audio – including Dolby Surround upmixer for legacy content.

DTS:X®
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

SPECIFICATIONS



RX-A4A
Amplifier Section Channel 7.2
Rated Output Power (1kHz, 1ch driven) 135 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 110 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) 165 W (8 ohms, 10% THD)
High Slew Rate Amplifier Yes
Surround Sound Processing Surround:AI Yes
CINEMA DSP Yes (HD3)
DSP Programs 24
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes
SILENT CINEMA / Virtual CINEMA DSP Yes
Dolby Atmos Yes
Dolby Atmos Height Virturalizer Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround Yes
DTS:X Yes
DTS-HD Master Audio Yes
Audio Features File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct Yes
Compressed Music Enhancer Yes
High-resolution Music Enhancer Yes
YPAO multi-point measurement Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
DA Converter 384 kHz / 32-bit ESS Hyperstream DAC ES9007S
Video Features HDMI eARC Yes
HDMI Audio Return Channel Yes
HDMI Pass-through 8K60AB, 4K120AB, 40GBPS
HDMI Up-scaling Yes up to 8K
HDMI Up-conversion N/A
Dolby Vision Yes
HDR 10+ Yes
VRR/ALLM/QMS/QFT Yes (via firmware update)
Video adjustment N/A
Connectivity MusicCast Surround Yes
HDMI Input/Output 7 / 3 (HDCP2.3)
HDMI CEC Yes
USB Input Yes
Network Port Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay 2 Yes
Bluetooth Yes (SBC / AAC)
Front AV Input USB
Digital Audio Input/Output: Optical 2 / 0
Digital Audio Input/Output: Coaxial 1 / 0
Analog Audio Input/Output 4 / 0
Phono Input Yes
XLR Terminal N/A
Component Video Input/Output N/A
Composite Video Input/Output N/A
Preout 7.2-ch
Headphone Output 1
Tuner Section FM/AM Tuner Yes (Availability varies by region.)
DAB Tuner Yes (Availability varies by region.)
User Interface On-screen display Graphical User Interface
SCENE SCENE PLUS (8 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes
Remote Control Unit Yes
Zone Control Zone 2 Audio Output Preout / HDMI
Zone 3 Audio Output N/A
Zone 4 Audio Output N/A
Powered Zone Zone 2
Zone Video Output N/A
Zone B Output N/A
Zone GUI N/A
RS-232C Interface N/A
+12V Trigger Output 2
Remote (IR) Input/Output 1 / 1
Party Mode Yes
General Standby Power Consumption (IR only) <0.4 W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D)

435 W x 191 H x 442 D mm (with antenna up: 435 W x 270 H x 442 D mm)

Weight 16.2 kg
1 Year
